S-Family: a new generation of small robots

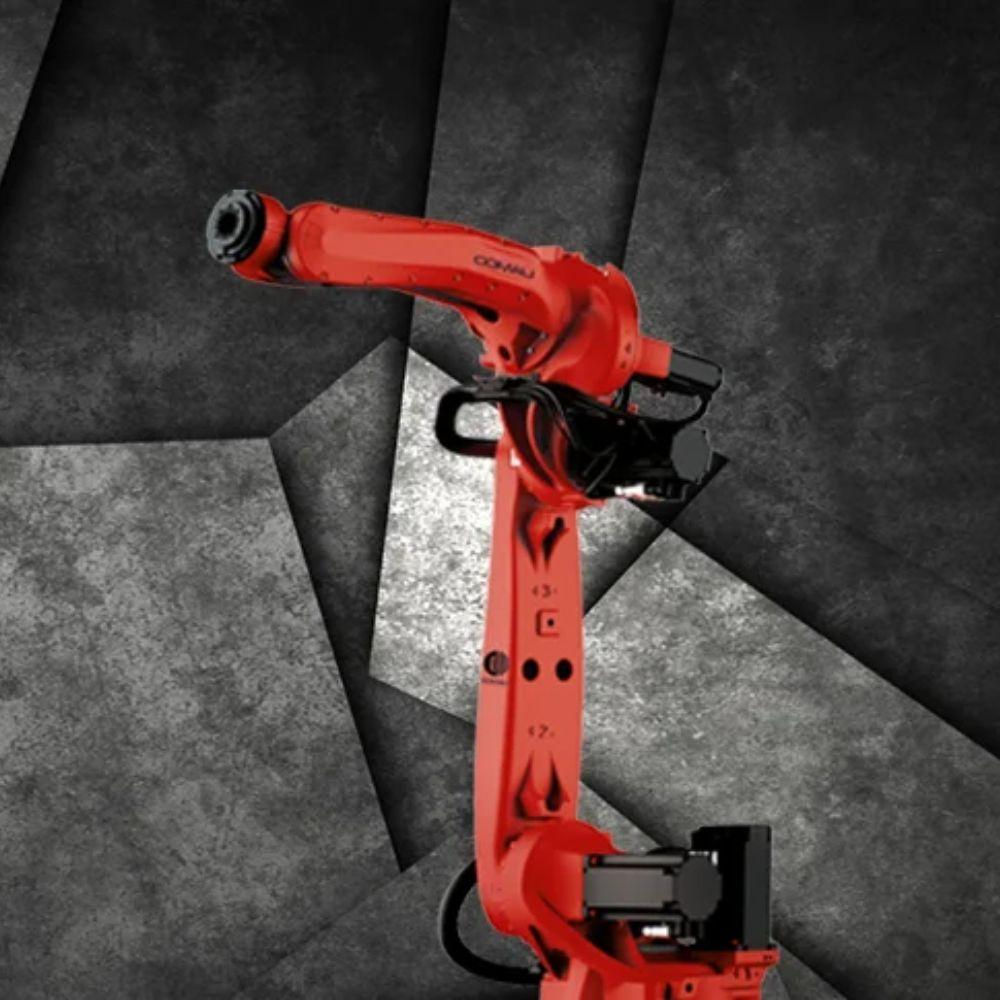

Introducing the S-Family: a new generation of small robots designed to meet the diverse automation needs of customers in General Industry sectors. Developed by Comau, a leading industrial automation provider, the S-18 combines traditional expertise with cutting-edge technologies to provide exceptional performance and accuracy.

This robot offer 18 kg payload and a maximum reach of 1730mm, ensuring excellent cycle time, repeatability, and path control accuracy. Trust Comau’s seasoned industrial experts and innovators to deliver the perfect fusion of tradition and modernization in robotic technology with the S-18.

Technical specifications: Comau Robot S-18

Modal S-18-1.7
Number of axes 6
Maximum Wrist Payload 18 kg
Maximum horizontal reach 1730 mm
Torque on Ax4 50 Nm
Torque on Ax5 50 Nm
Torque on Ax6 30 Nm
Motion range Ax1 +/- 180° (205°/s)
Motion range Ax2 -90° / +160° (180°/s)
Motion range Ax3 -175° / +90° (260°/s)
Motion range Ax4 +/- 200° (400°/s)
Motion range Ax5 +/- 125° (400°/s)
Motion range Ax6 +/- 2700° (635°/s)
Repeatability +/- 0.03 mm
Tool coupling flange ISO ISO 9409 – 1 – A50
Robot weight 265 kg
Dust and water Protection Class IP65 (wrist IP68)
Footprint 330mm x 330mm
UL94 Classification V0
nergy Classification In accordance with Fraunhofer IWU Insitute
Mounting position Floor / Ceiling / Inclined Plane / Wall

Suitable for

Assembly, Handling / Packaging, Machine tending, Dispending, Cosmetic Sealing, Arc Welding

Features

  • Hollow Wrist to facilitate cable routing
  • IP65 and IP68 (Wrist) classifcation: High protection against dust and water
  • Hygenic Wrist Design to avoid dust accumulation
  • UL94-V0
  • Energy Certificate (Fraunhofer IWU Institute)
  • Slim and Curved Arm: to minimize interference
  • Small Footprint and Low Weight
  • Special Features: Fully integrated dressings (optional)

Benefits

  • The first robot in the world with fully integrated dressing and panel connectors on the robot base
  • Hollow Wrist caters to Arc Welding applications and Hygienic environments
  • Best in class protection: IP68 (Wrist)
  • Easy to install, integrate, program and use
  • Small footprint (33x33cm)
  • High repeatibility and accuracy
